Product Details:
|
| Strength: | High | Material: | Metal |
|---|---|---|---|
| Color: | Metallic | Size: | Various Sizes Available |
| Installation: | Easy | Shape: | Channel |
| Application: | Construction, Manufacturing, And Industrial Use | Weight: | Lightweight |
| Whatsapp: | +8615301539521 | E-mail: | Sales@tisco-steel.com |
| High Light: | ASTM A106 hot rolled c channel,hot rolled c channel steel purlins,S235jr c channel steel purlins |
||

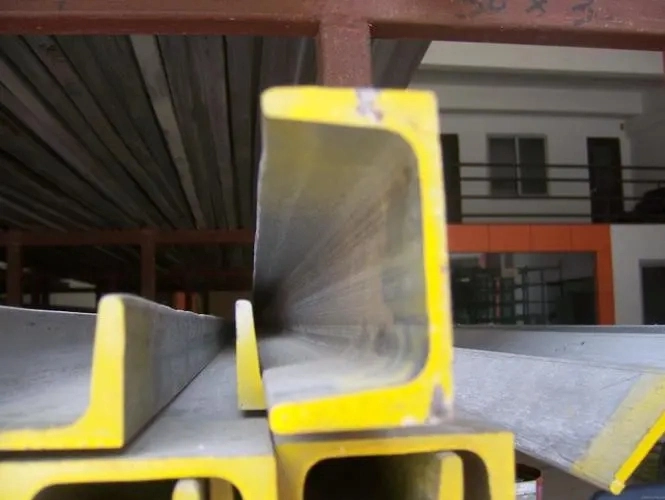

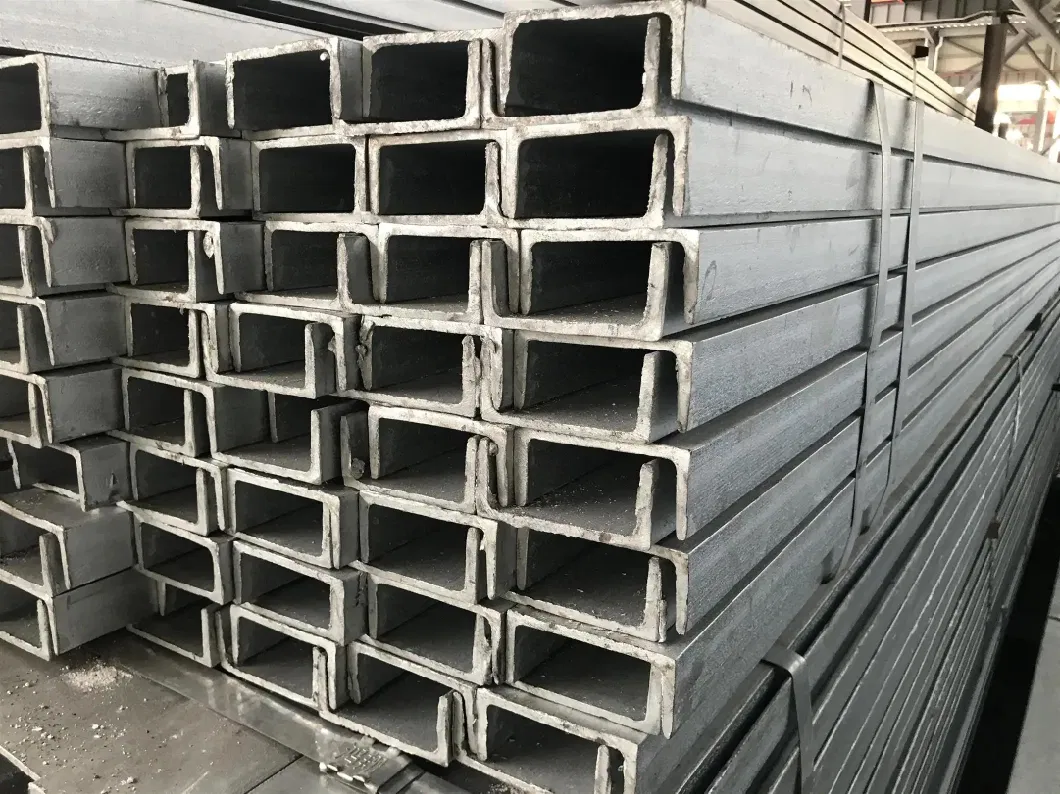

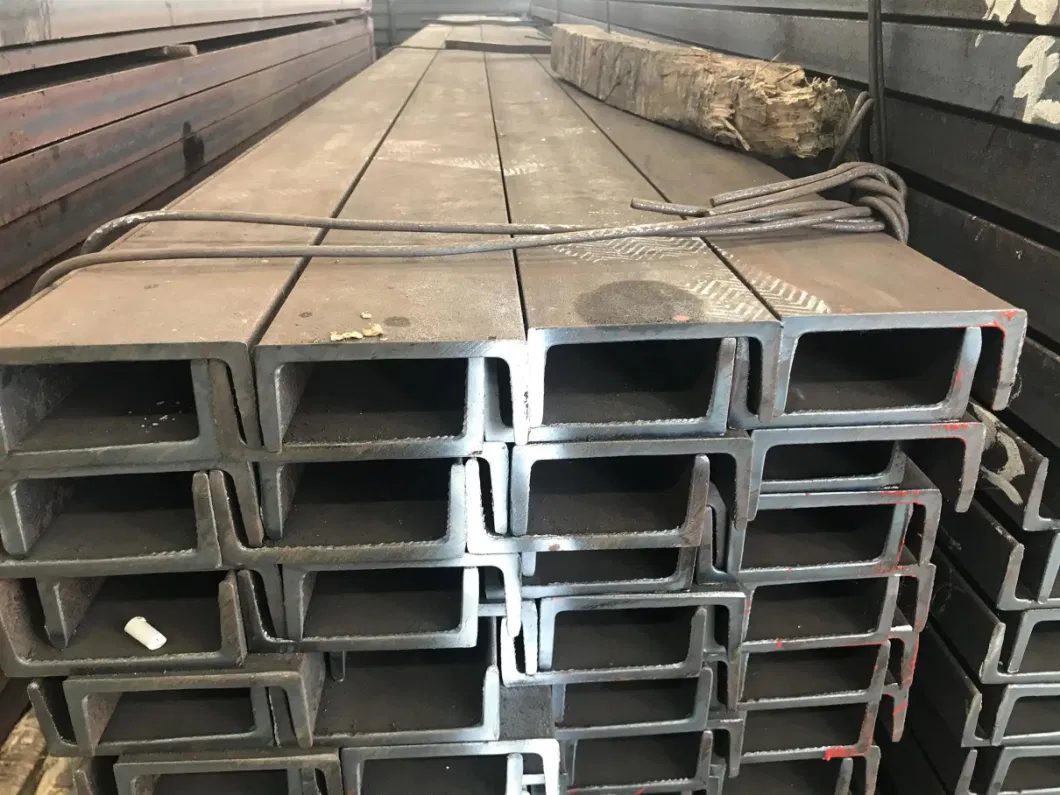

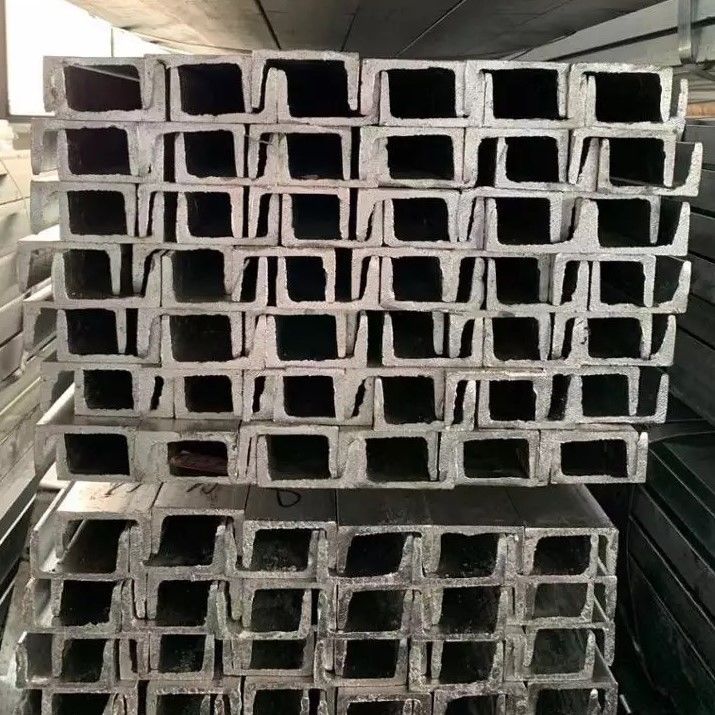

Hot Rolled C Z U Purlin Steel Structural Channel Customizable Galvanized Steel
Metal Channels are a type of pipe channel that is made from metal and is available in various sizes. The metallic color and polished surface finish make it highly suitable for construction, manufacturing, and industrial use. It is known for its excellent corrosion resistance, making it a reliable choice for a variety of projects.
Metal Channels are commonly used in a variety of applications ranging from structural support systems to industrial machinery. They can be used for both indoor and outdoor projects. They are also popular in the construction of staircases, balconies, and walkways. Additionally, they are ideal for ducts, piping, and ventilation systems.
Metal Channels are designed to be strong and durable and are available in a range of shapes and sizes. The durable metal material ensures that they can withstand the elements and maintain their shape and integrity for many years. With their high-quality construction, they are a reliable and cost-effective choice for any project.
| Products | ASTM A106 A36 Ss400 S235jr Hot Rolled C Z U Purlin Steel Structural Channel Customizable Galvanized Steel UPN metal mild steel Channels with SGS Certificate |
| Grade | Q235B,Q345B |
| Type |
GB standard(10#-40#,100*48mm--400*102mm) JIS standard(50*25mm--250*90mm) |
| Length | 6m, 12m, Large quantities can be customized |
| Technique | Hot rolled |
| Application | Mainly used for building structure, vehicle manufacturing, and other industrial structure, channel steel is often used with i beam. |
| Payment Terms | L/C or T/T |

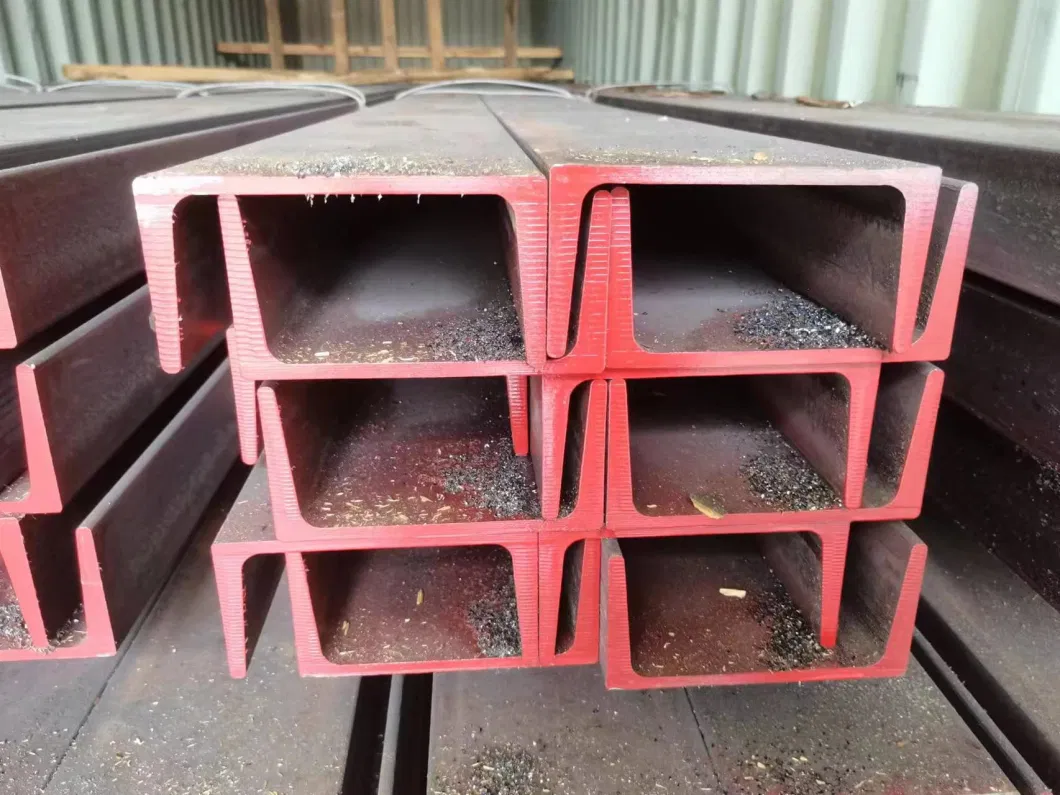

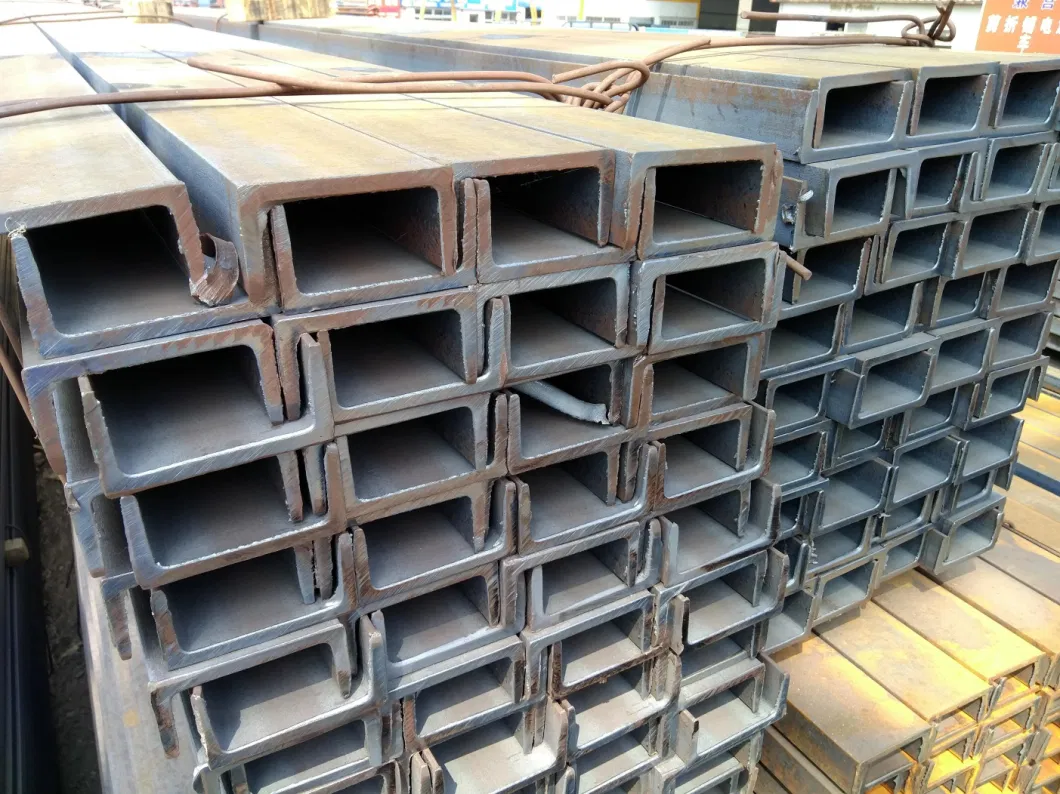

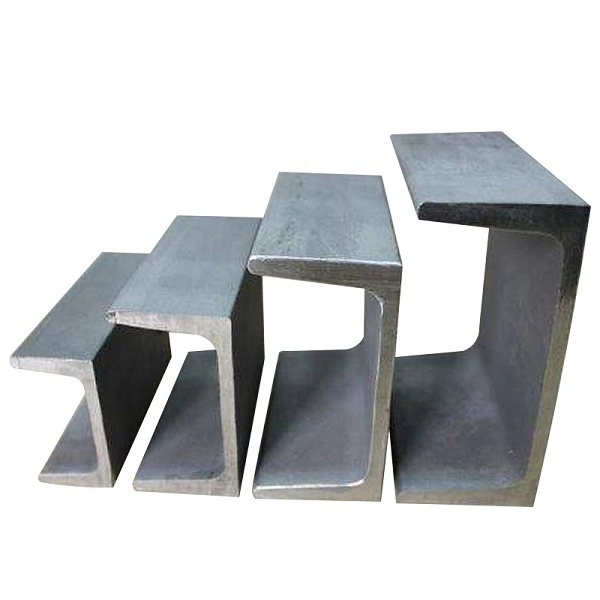

Mild steel channel, also commonly known as U channel or C channel is measured by width x depth x weight per meter.
These sections are manufactured from S275JR grade steel and have excellent machinability and weldability. Our stocks are available in mill finish, red oxide, or Zintec finishes to offer a range of corrosion resistance properties to suit your project. To increase corrosion resistance mild steel is normally painted or galvanized after fabrication.
Mild steel channel is widely used in civil engineering and construction to support floor joists and to weight bear above window and door gaps where the structural load does not require an I beam.
If you are uncertain whether your project requires mild steel C channels or an I beam, we recommend you consult a structural engineer or other qualified professional.
Mild steel channel is supplied in lengths up to 6 meters long and can be easily cut, drilled, and machined. It is particularly suited to all methods of welding. Mild Steel Channel is produced to grade EN 10025-2 S275JR one of the most widely used steel specifications for general construction.

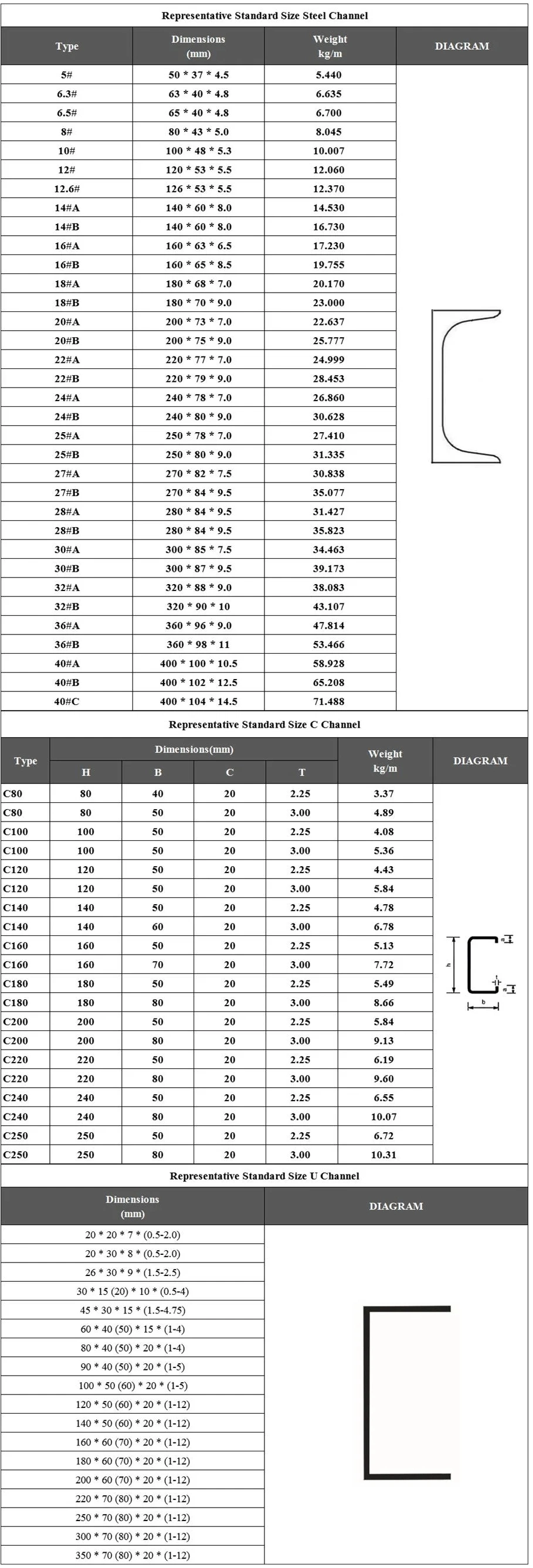

| Nominal Size (mm) | Depth of Section (mm) | Flange Width (mm) | Flange Thickness (mm) | Web Depth (mm) | Web Thickness (mm) | Weight (kg/m) | Metres/ Tonne (m/t) | 9m | 10.5m | 12m | 13.5m | 15m | 16.5m | 18m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 x 50 | 100 | 50 | 6.70 | 87 | 4.20 | 8.33 | 120 | ✓ | ✓ | |||||
| 125 x 65 | 125 | 65 | 7.50 | 110 | 4.70 | 11.90 | 84 | ✓ | ✓ | |||||
| 150 x 75 | 150 | 75 | 9.50 | 131 | 6.00 | 17.70 | 57 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 180 x 75 | 180 | 75 | 11.00 | 158 | 6.00 | 20.90 | 48 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 200 x 75 | 200 | 75 | 12.00 | 176 | 6.00 | 22.90 | 44 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 230 x 75 | 230 | 75 | 12.00 | 206 | 6.50 | 25.10 | 40 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 250 x 90 | 250 | 90 | 15.00 | 220 | 8.00 | 35.50 | 28 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 300 x 90 | 300 | 90 | 16.00 | 268 | 8.00 | 40.10 | 25 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 380 x 100 | 380 | 100 | 17.50 | 345 | 10.00 | 55.20 | 18 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 50 x 25 | 50 | 25 | 3.83 | 261 | ✓ | ✓ |
| Standard Equivalent | ||||||||
| China GB/T, YB |
America ASTM |
Japan JIS |
Germany DIN EN |
England BS EN |
France NF EN |
ISO | Korea KS |
India IS |
| Q195 | Grade B |
SS330 |
S185(1.0035) | E185 Fe(310) |
D | |||
| Q215 | Grade C CS Type B |
SS330 (SS34) |
Fe-330 | |||||
| Q235-A | Grade D | SS400 | S235JR (1.0038) | E235 A E235 B E235 C E235 D |
SS400 (SS41) |
|||
| Q235-B | S235J0(1.0114) | Fe-410 | ||||||
| Q235-C | S235J2(1.0117) | |||||||
| Q235-D | S235JR(1.0038) | |||||||
| Q275 | SS Grade 40 (275 ) |
SS490 | S275JR(1.0044) S275J0(1.0143) S275J2(1.0145) |
E275 (Fe430) |
SS490 | Fe-490 | ||
| Q345-A | Grade 50 (345) |
SPFC590 | E355(1.0060) | E355 | ||||
| Q345-B | S355JR(1.0045) | |||||||
| Q345-C | S355J0(1.0553) | |||||||
| Q345-D | S355J2(1.0577) | |||||||
| Q345-E | S355NL(1.0546) | |||||||
Mild steel channel, also commonly known as U channel or C channel is measured by width x depth x weight per metre.
These sections are manufactured from S275JR grade steel and have excellent machinability and weldability. Our stocks are available in mill finish, red oxide, or Zintec finish to offer a range of corrosion resistance properties to suit your project. To increase corrosion resistance mild steel is normally painted or galvanised after fabrication.
Mild steel channel is widely used in civil engineering and construction to support floor joists and to weight bear above window and door gaps where the structural load does not require a I beam.
If you are uncertain whether your project requires mild steel C channel or an I beam, we recommend you consult a structural engineer or other qualified professional.
Mild steel channel is supplied in lengths up to 6 metres long and can be easily cut, drilled, and machined. It is particularly suited to all methods of welding. Mild Steel Channel is produced to grade EN 10025-2 S275JR one of the most widely use steel specifications for general construction.

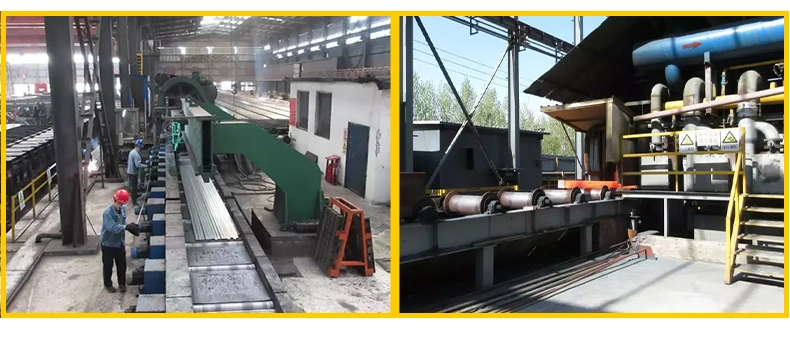

large-scale iron and steel enterprise integrating iron and steel production, processing, distribution and trade. The comprehensive strength has jumped to the forefront of the domestic steel industry.
Steel is committed to the research and development, production and processing of carbon steel and profiles and pipes, with strong research and development strength and reliable quality assurance capabilities. Products are suitable for nuclear power, aviation, marine engineering, oil exploration, construction and other fields. The comprehensive annual production capacity is 500,000 tons, and the products are exported to more than 100 countries and regions.
Q: Can you send samples?
A: Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
Q: What product information do I need to provide?
A: Quality grade, width, thickness, coating, and the number of tons you need to purchase.
Q: What are the shipping ports?
A: Under normal circumstances, we ship from Shanghai, Tianjin, and Qingdao ports, you can choose other ports according to your needs.
Q: About product prices?
A: Prices vary from period to period due to cyclical changes in the price of raw materials.
Q: How long does your delivery time take?
A: In general, our delivery time is within 7-15 days, and may be delayed if the demand is extremely large or special circumstances occur.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
Q: Does the product have a quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

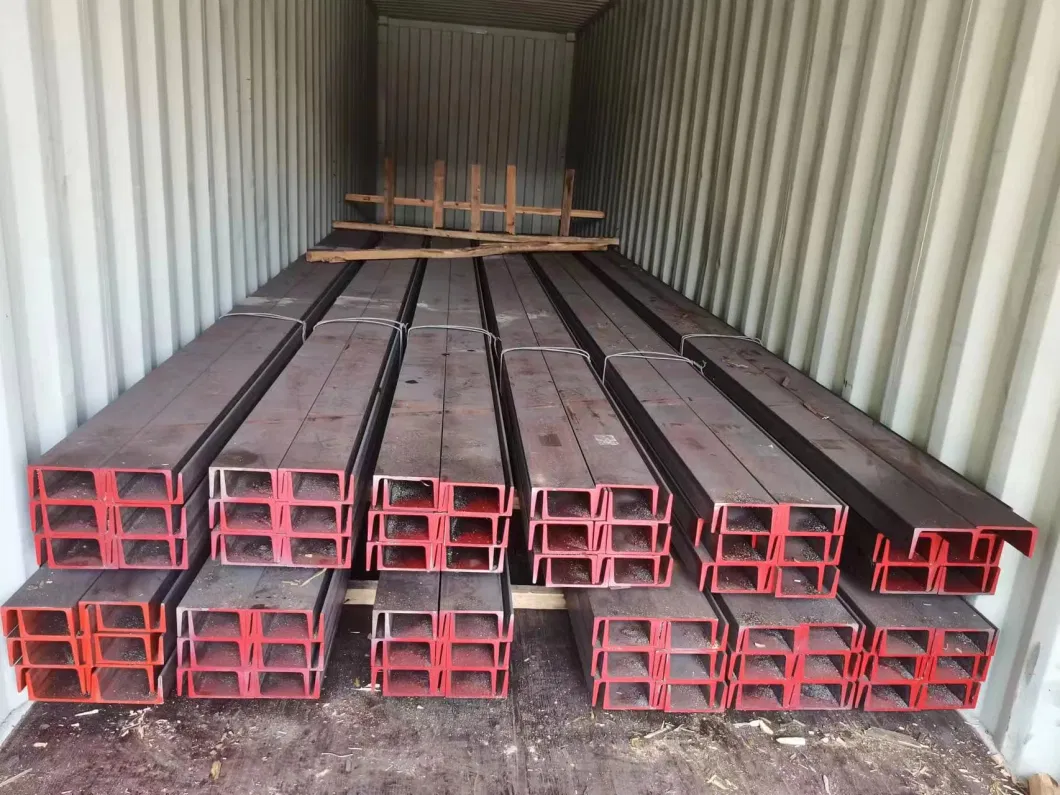

Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
