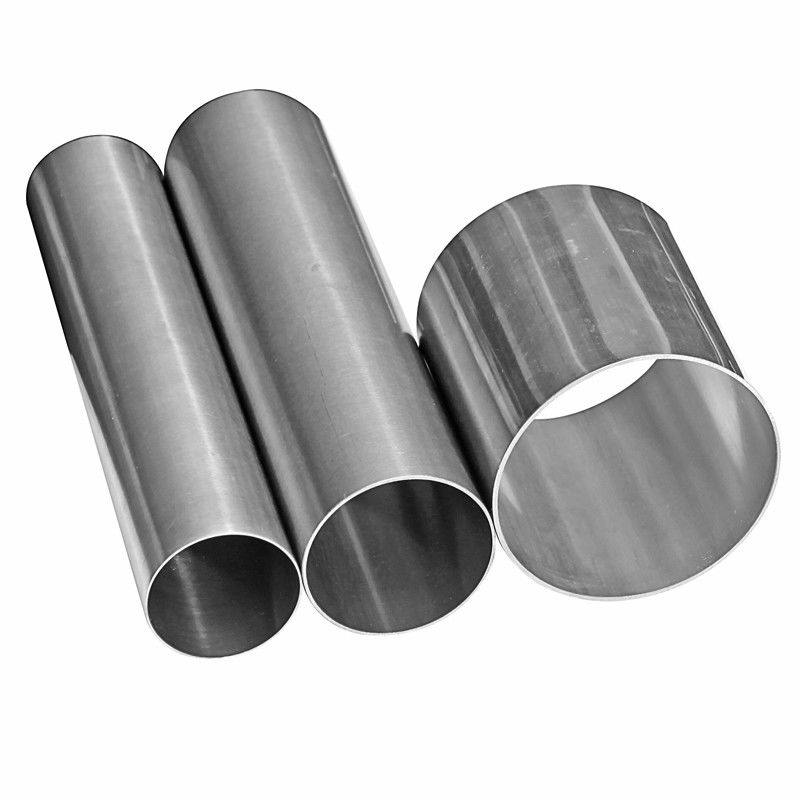

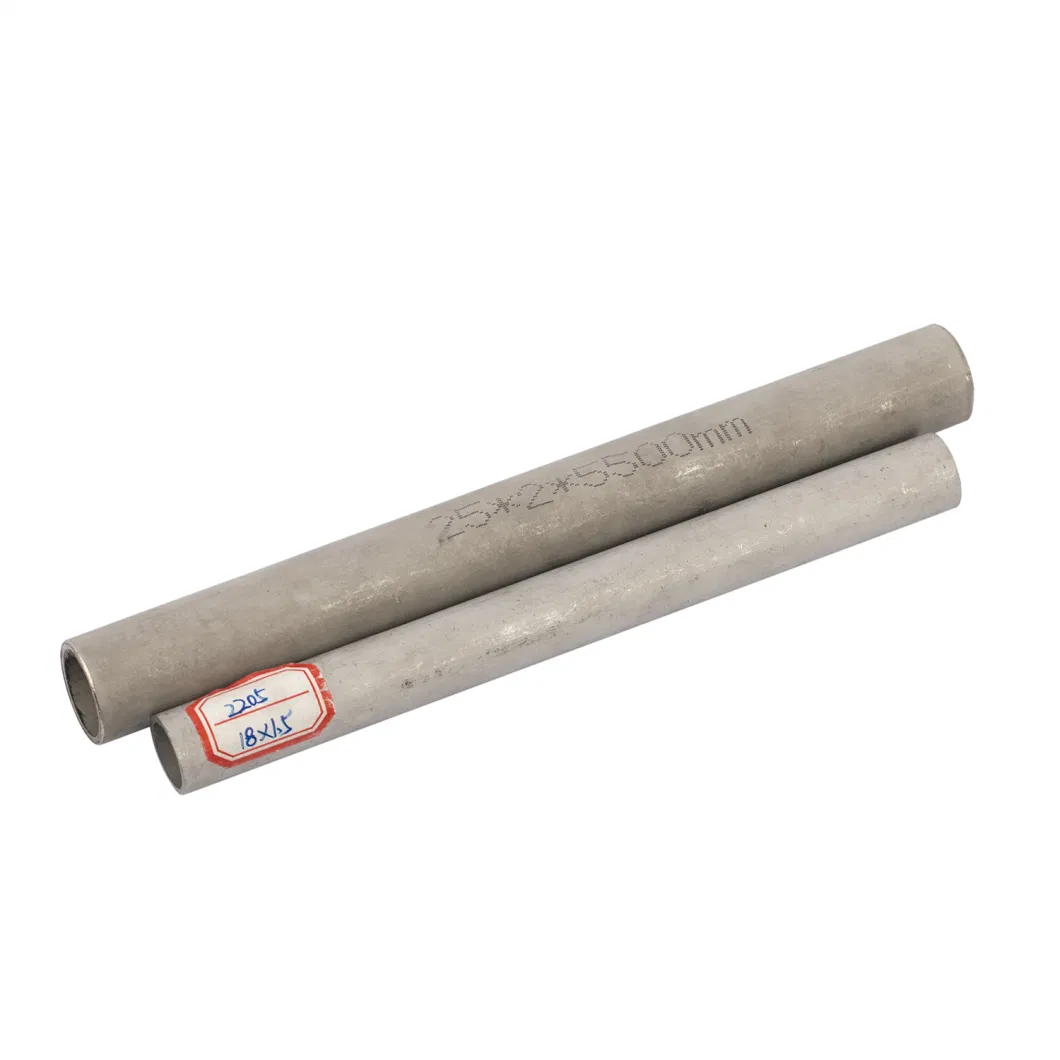

Spiral Welded Duplex Stainless Steel Pipes Tubes 600-1500mm

Product Description:

Stainless Steel Pipe is a lightweight and durable product made of stainless steel materials that are resistant to corrosion and pressure. It is available in stock with enough stock in supply. Its material is stainless steel, which is highly resistant to corrosion and rust. It also provides excellent tensile strength. The processing service for this product is spiral welded, which is a highly efficient method of forming stainless steel pressure tubing that is used to join two pieces of stainless steel components. Its welded stainless steel tube is highly polished and smooth, with excellent pressure rating and surface finish. This product provides excellent resistance to corrosion and temperature. It is also a great choice for those who require high tensile strength and durability.

Product Description

Stainlesss steel pipe:

Outer Diameter	Seamless:6-720mm or Customized
	Welded:6-2500mm or Customized
Wall Thickness	Seamless:0.5-120mm or Customized
	Welded:0.5-40mm or Customized
Length	1-12m as customer requirement
Technique	Cold Drawn
End/Edge	PE/BE/THR
Material	TP304H, TP309S, TP309H, TP310S, TP310H, TP316, TP316L, TP316N, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, TP347LN, TP348, TP348H, TP405, TP410, TP429, TP430, TP443, TP446, TP409, TPXM-10, SUS304HTB, SUS304LTB,SUS309TB,SUS309STB,SUS310TB,SUS310STB,SUS316TB,SUS316HTB, SUS316HTB, SUS316LTB,SUS316TiTB,SUS317TB,SUS317LTB,SUS836LTB,SUS890LTB,SUS321TB, SUS409LTB, SUS410TB,SUS410TiTB,SUS430TB,SUS430LXTB,SUS430JL1TB,SUS436LTB
Surface Fnished	No.1/No.1/2B/BA/Hairline/Polished/Mirror/8K/Color Surface
Standard	ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JISG3463,GOST9941,EN10216, BS3605,GB13296

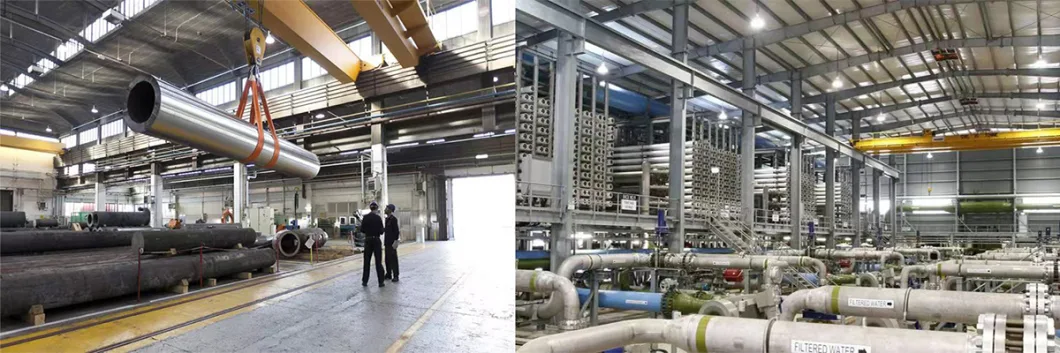

Application	Pipeline Transport Boiler Pipe Hydraulic/Automobile Pipe Oil/Gas Drilling Food/Beverage/Dairy Products Machinery Industry Chemical Industry Mining Construction & Decoration Special Purpose
Trade Terms	Price terms	FOB,CIF,CFR,CNF
	Payment terms	T/T,L/C

Chemical composition:

Grade of Material	C	Si	Mn	P	S	Ni	Cr	Mo
AISI 201/ASTM201/UNS S20100/DIN 1.4372/JIS SUS201	≤0.15	≤1.00	5.50~7.50	≤0.060	≤0.03	1.00 ~1.50	13.50~15.00
AISI 202/ASTM 202/UNS S20200/DIN 1.4373/JIS SUS202	≤0.15	≤1.00	7.50~10.00	≤0.060	≤0.03	4.00~6.00	17.00~19.00
AISI 304/ASTM 301/UNS S30400/DIN 1.4301/JIS SUS304	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	8.00~11.00	18.00~20.00
AISI 304L/ASTM 304L/UNS S30403 DIN1.4306/JIS SUS304L	≤0.035	≤1.00	≤2.00	≤0.045	≤0.03	8.00~13.00	18.00~20.00
AISI 316/ASTM 316/UNS S31600/DIN 1.4401/JIS SUS316	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	10.00~14.00	16.00~18.00	2.00~3.00
AISI 316L/ASTM 316L/UNS 31603/DIN 1.4404/JIS SUS316L	≤0.035	≤1.00	≤2.00	≤0.045	≤0.03	10.00~14.00	16.00~18.00	2.00~3.00
AISI 316L Ti/ASTM 316L/UNS S31635/DIN 1.4571/JIS SUS 316Ti	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	10.00~14.00	16.00~18.00	2.00~3.00
AISI 409L/ASTM 409L	≤0.03	≤1.00	≤1.00	≤0.040	≤0.03		10.50~11.75
AISI 904L/ASTM 904L	≤0.02	≤1.00	≤2.00	≤0.045	≤0.035	23.0-28.0	19.0-23.0	4.0-5.0
Grade of Material	Elongation (%)		Tensile Strengh (Rm) N/m m³		Yield Strength (Rp) 0.2%N/m m³		Hardness (HV)
AISI 201/ASTM201/UNS S20100/DIN 1.4372/JIS SUS201	≥35		≥520		≥210		≤253
AISI 202/ASTM 202/UNS S20200/DIN 1.4373/JIS SUS202	≥35		≥590		≥210		≤218
AISI 304/ASTM 301/UNS S30400/DIN 1.4301/JIS SUS304	≥35		≥520		≥210		≤200
AISI 304L/ASTM 304L/UNS S30403 DIN1.4306/JIS SUS304L	≥35		≥480		≥180		≤200
AISI 316/ASTM 316/UNS S31600/DIN 1.4401/JIS SUS316	≥35		≥520		≥210		≤200
AISI 316L/ASTM 316L/UNS 31603/DIN 1.4404/JIS SUS316L	≥35		≥480		≥180		≤200
AISI 316L Ti/ASTM 316L/UNSS31635/DIN 1.4571/JIS SUS 316Ti	≥40		≥520		≥205		≤200

About Our Company:


We are a company specializing in stainless steel products in china,engaged in the export of stainless steel products, we would like to briefly introduce our company to you.

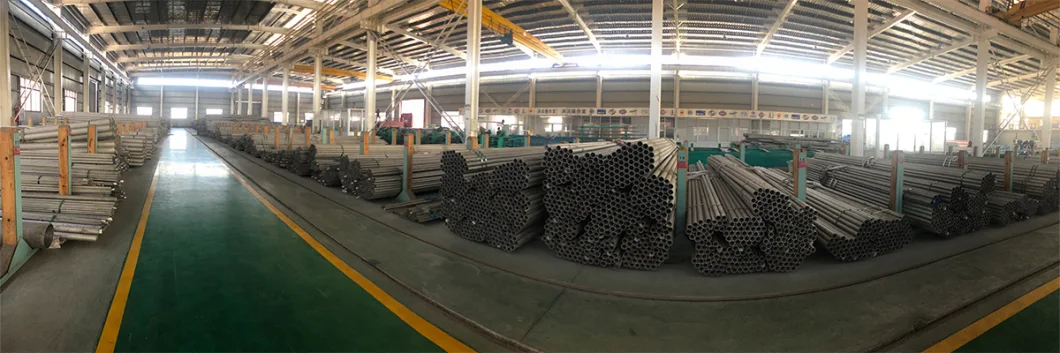

We have been engaged in the stainless steel industry for 16 years since 2006.We have a wealth of industry knowledge, a stable factory chain, and mature manufacturing technology with professional production equipment and experienced production workers.

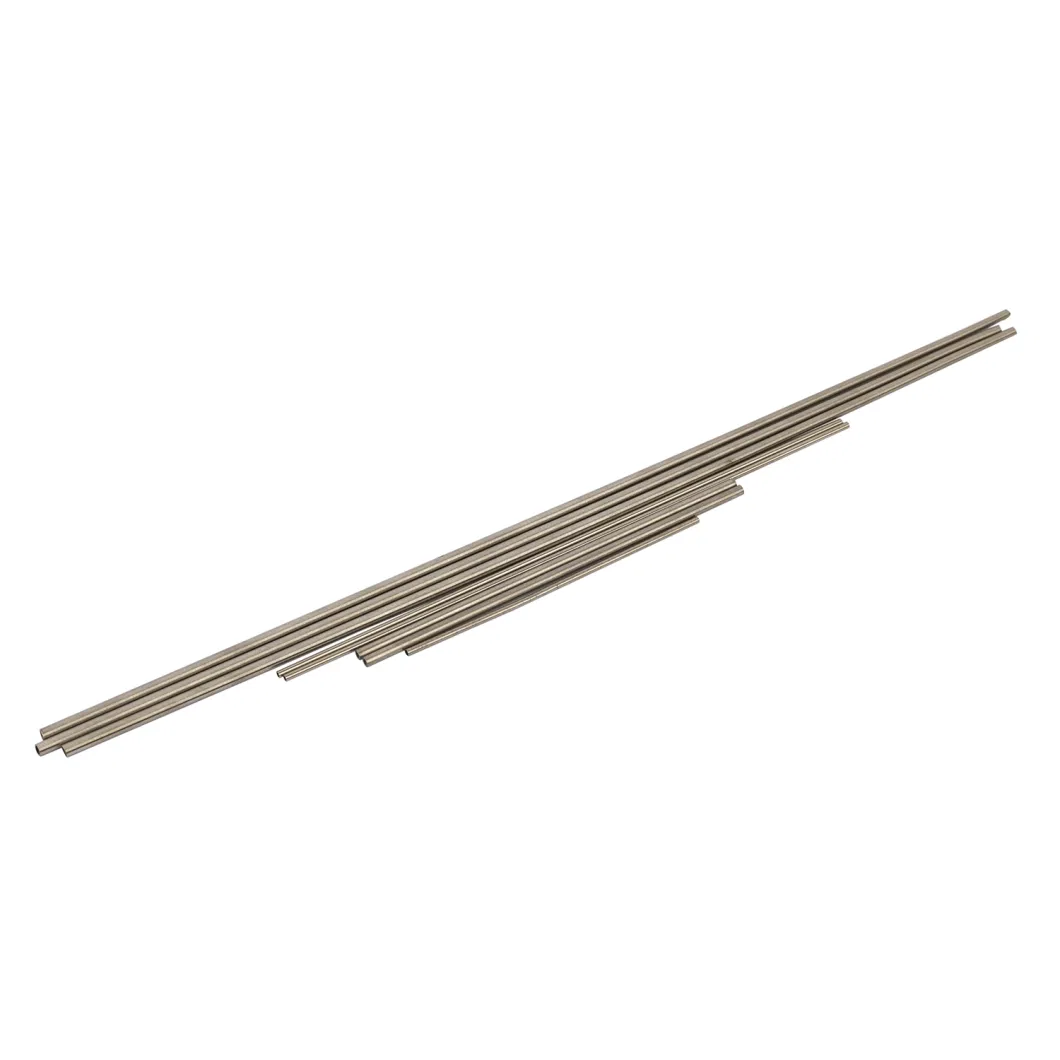

We can provide pipes/fittings/steel plates/bars/coil/flange...The hot-selling products are stainless steel fluid tubes, stainless steel thick-walled tubes, stainless steel heat exchange tubes and condenser tubes, stainless steel capillary tubes, and stainless steel square and rectangular shaped tubes.
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.








Our Customer:

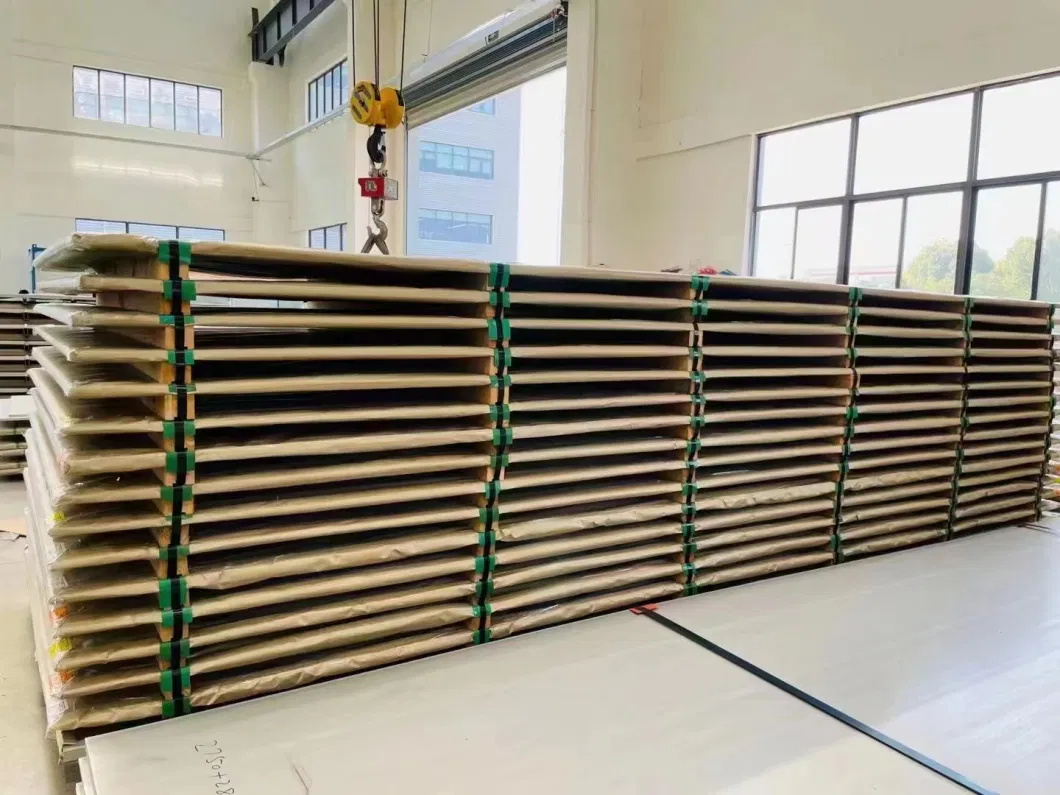

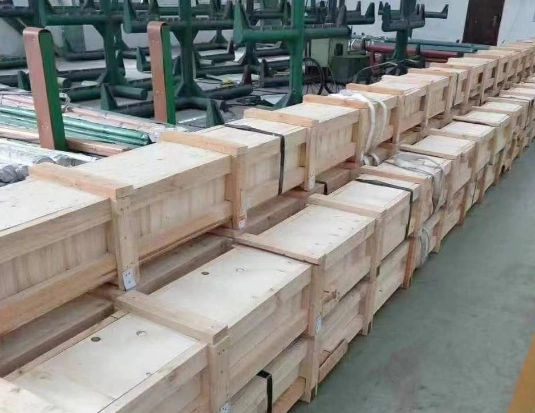

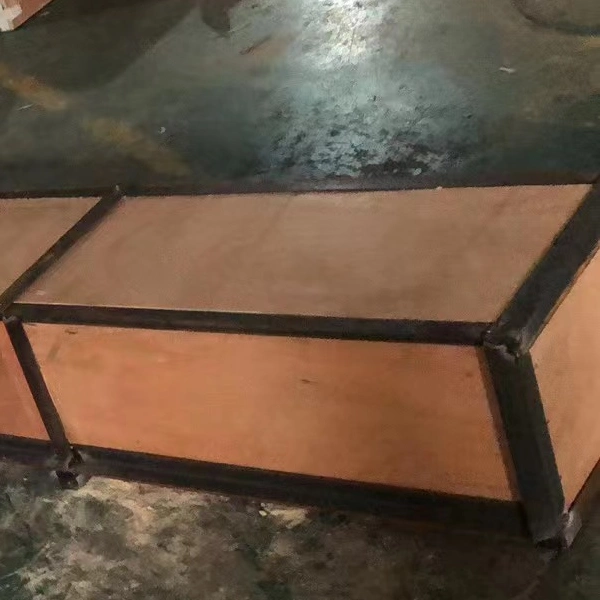

About Packing:
