Product Details:
|
| Test: | High Quality Inspection | Quality: | High Quality Inspection |
|---|---|---|---|
| Tensile Strength: | 70,000 Psi | Yield Strength: | 50,000 Psi |
| Transport Package: | Standard Seaworthy Package | Section Shape: | Round |
| Application: | Ships Steel Structure | Out Diameter: | As Requirement |
| Whatsapp: | +8615301539521 | E-mail: | Sales@tisco-steel.com |
| High Light: | AISI 1045 Round Bar for Steel Shafts,AISI 1045 Round Bar 100mm,SAE1045 Carbon Steel Round Bar |
||

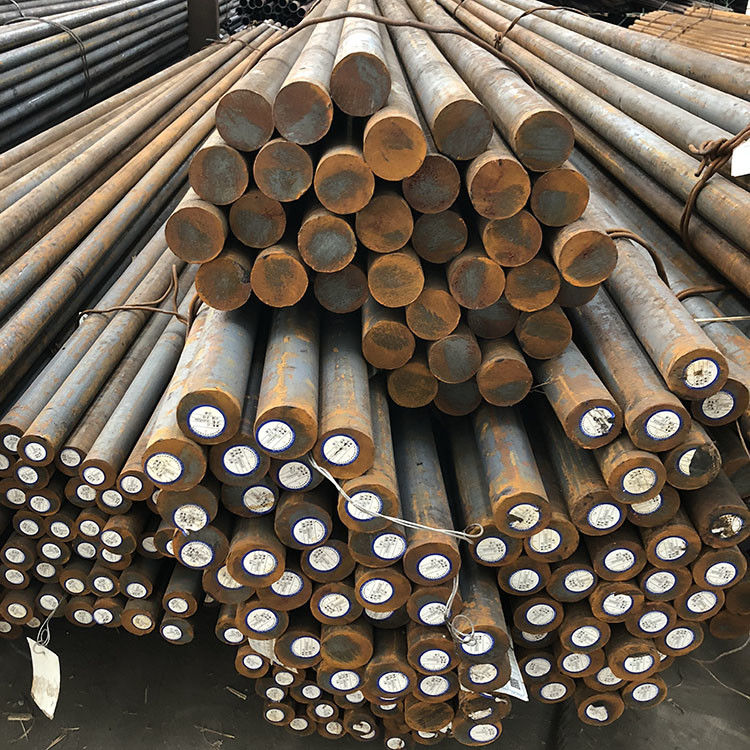

AISI1045 Round Bar SAE1045 Carbon Steel Round Bar for Steel Shafts
Carbon Steel Bar is a kind of low carbon steel rod which is cold finished and made from high quality raw material. It is a versatile material and has a wide range of applications, such as being used in the manufacturing of bolts, screws, nuts, axles, shafts, and other mechanical components. The Carbon Steel Bar is also used in the production of automotive and shipbuilding parts, as well as in the construction of bridges and other infrastructure projects. Its low carbon content ensures that the Carbon Steel Bar is suitable for use in applications that demand a high level of corrosion resistance and strength. The Carbon Steel Bar is available in various shapes, such as round bars and flat bars, and is also available in various sizes to meet customer requirements. All orders are inspected to guarantee the highest quality and are shipped in standard seaworthy package. Payment terms are 30%T/T Advance + 70% Balance.
| SPECIFICATIONS FOR ALLOY STEEL BAR | |
| Product Name | Alloy steel bar |
| Standard | AISI,ASTM, EN, BS, GB, DIN, JIS |
| Diameter | 3mm-500mm |
| Dia Tolerance | H9 / H11 / H13 ,or requirement |
| Materials | Die steel/Gear /shaft steel/Steam turbine bolt steel/Steel for Military Industry/Steel for rock drilling/High-strength alloy structural steel/Low alloy structural steel/Spring plate, thin plate, strip steel, round steel/Stainless steel /Ordinary carbon structural steel/High-speed tool steel |
| Surface | Polished bright,black,Grinding |
| Inspection | ISO,BV,SGS,MTC |
| Packing | Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit forall kinds of transport,or as required |
| Supply Ability | 1000 metric tons/month |
| MOQ | 500kgs |
| Shipment time | Within 7-10 workdays after receiving deposit |
| Payments | T/T |
| Maximetal mainly supply below materials grades as follows: | |||
| Type of steel | GB | ASTM(SAE) | JIS |
| Carbon steel Low alloy steel |
Q195,Q215 Q235,Q345 |
A285MGr.B A570MGr.A |
SS330 SS400,SS490... |
| Quality carbon steel |
10,20,35,40,60 20Mn,25Mn, 35Mn,40Mn |
1010,1020,1035, 1045,1060,1022, 1026,1037,1039 |
S10C,S20C, S35C,S45C... |
| Alloy structure steel |
20Mn2,40Mn2,20Cr,40Cr, 20CrMo,35CrMo,42CrMo, 20CrMnTi,20Cr2Ni4, 40CrNiMo |
1320,1345,5120, 5140,4118,4135, 4140,3316,4340 |
SMn420,SMn438, SCr420,SCr440 SCM430,SCM435 SCM440,SCN815 SNCM439 |
| Cold heading steel |
ML10,ML20,ML30, ML35,ML35CrMo, ML42CrMo,ML15MnB |
1012,1020,1030 1034,4135,4140, 1518 |
SWRCH10R SWRCH20K SWARCH35K SNB7 |
| Spring steel | 65Mn,60Si2Mn,50CrVA | 1066,6150 | SCP6,SCP10 |
| Bearing steel | GCr15 | E52100 | SUJ2 |
| Stainless steel | 1Cr13,2Cr13 | 412,420 | SUS410,SUS420 |
| Tooling steel | T8,T10 W6Mo5Cr4V2 |
W1A-8, W1A-9.5,M2 |
SK7,SK4,SKH9 |
| Free cutting steel | Y12,Y12Pb,Y15, Y15Pb,Y40Mn |
1212,11L08,1215 12L13,12L14,1141 |
SUM21,SUM32, SUM22L,SUM42... |

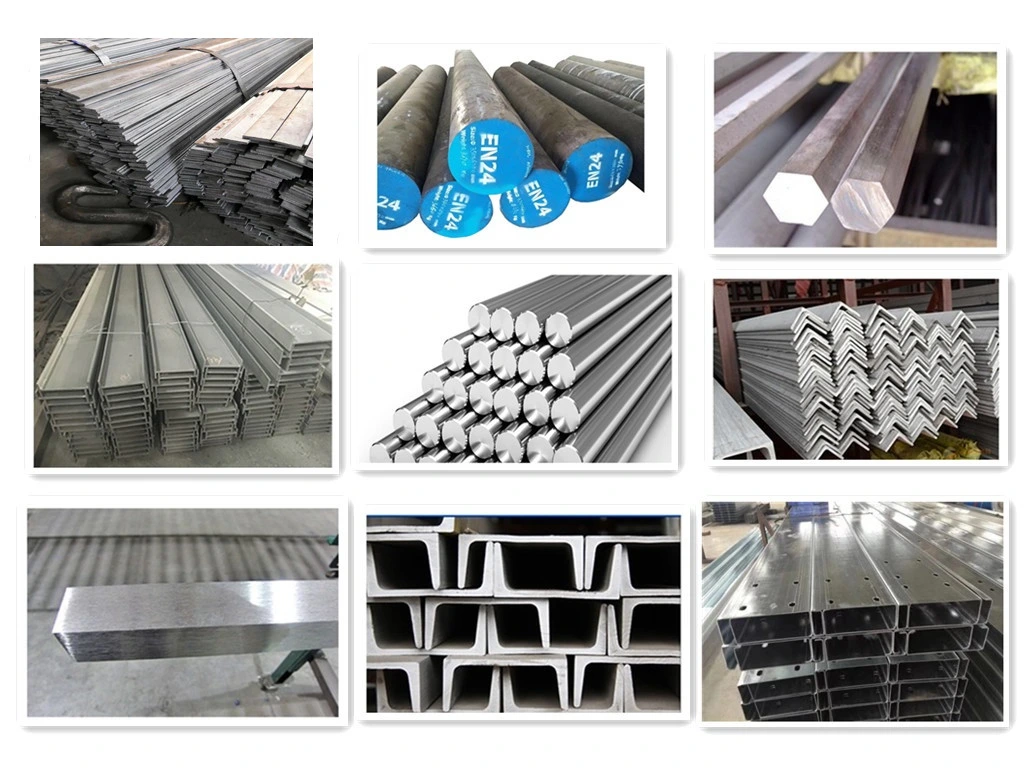

| Catalogue | 1.Die steel |
| 1)Hot rolled black bar: (5-400)x6000mm or according to your requirement. | |
| 2)Acid round bar: (5-400)x6000mm or according to your requirement. | |
| 3)Cold drawn bright bar: (1-20)x6000mm or according to your requirement. | |
| 4)Polishing round bar: (5-400)x6000mm or according to your requests. | |
| 2.Angle bar | |
| 1)Hot rolled angle bar: (16-200)x(16-200)x(3-18)x(3000-9000)mm or according to your requests | |
| 2)Acid angle bar: (16-200)x(16-200)x(3-18)x(3000-9000)mm or according to your requests. | |
| 3)Cold drawn angle bar: (16-200)x(16-200)x(3-18)x(3000-9000)mm or according to your requests. | |
| 3. Flat bar | |
| 1)Hot rolled flat bar: (3-30)*(10-200mm)*6000mm or according to your requests. | |
| 2)Cold drawn flat bar: (3-30)*(10-200mm)*6000mm or according to your requests. | |
| 4. Channel bar | |
| 1)Hot rolled channel bar: (5-100)x6000mm or according to your requests. | |
| 2)Acid channel bar: (5-100)x6000mm or according to your requests. | |
| 3)Cold drawn channel bar: (1-20)x6000mm or according to your requests | |

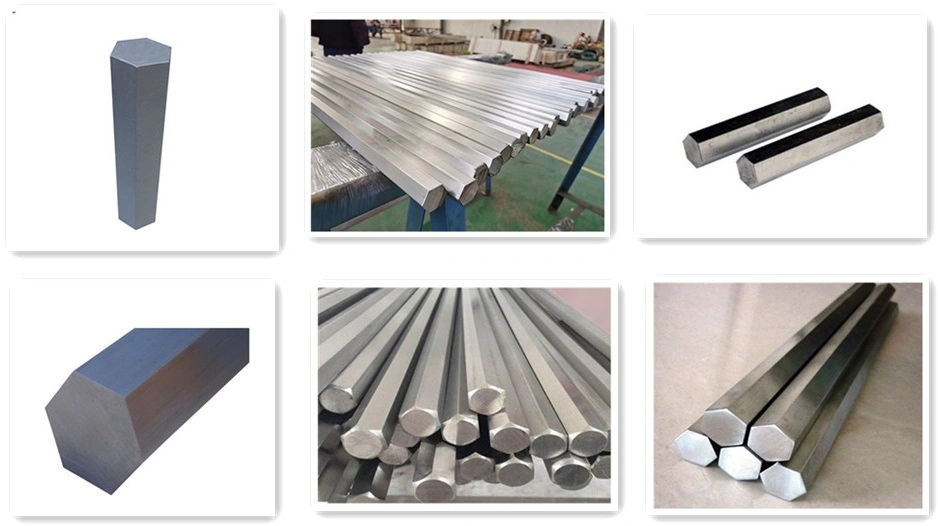

| 5.Hexagon bar | |
| 1)Hot rolled hexagon bar: (5-100)x6000mm or according to your requests. | |
| 2) Acid hexagon bar: (5-100)x6000mm or according to your requests. | |
| 3)Cold drawn hexagon bar: (1-20)x6000mm or according to your requests t. | |
| 4)Polishing hexagon bar: (5-100)x6000mm or according to your requests. | |
| 6. H Steel bar | |
| 1)Hot rolled H bar: (5-100)x6000mm or according to your requests. | |
| 2)Acid H bar: (5-100)x6000mm or according to your requests. | |
| 3)Cold drawn H bar: (1-20)x6000mm or according to your requests. | |
| 7. Square bar | |
| 1)Hot rolled black bar: (5*5-400*400)x6000mm or according to your requests. | |
| 2)Acid square bar: (5*5-400*400)x6000mm or according to your requests. | |
| 3)Cold drawn square bar: (1*1-20*20)x6000mm or according to your requests. | |
| 4)Polishing square bar: (5*5-400*400)x6000mm or according to your requests |
View more:
FAQ:
Q1. What are your company's main products ?
A1: Our main products are stainless steel/alloy steel plate/sheet, coil, round/square pipe, bar, channel,Wire,Wire rod and etc.
Q2. How do you control quality ?

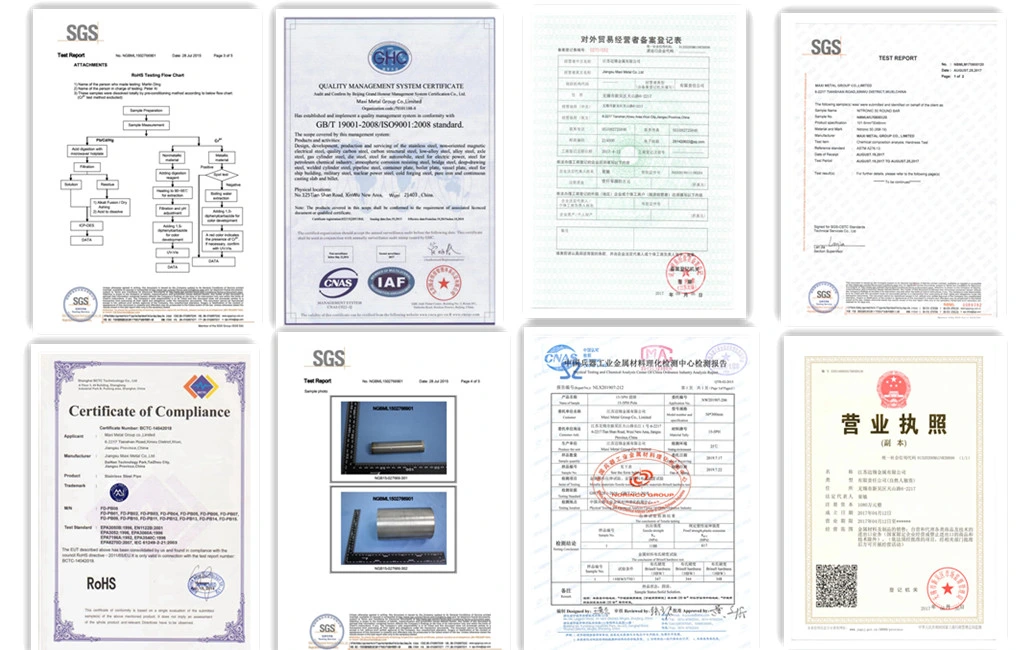

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS Verified.
Q3: What is the terms of packing?
A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.
Q4:What is your delivery time?
A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5. What are the advantages of your company ?
A5: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q6. How many coutries you already exported ?
A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India,Philippines, Switzerland, South Korea, Vietnam etc.
Q7. Can you provide sample ?
A7: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
