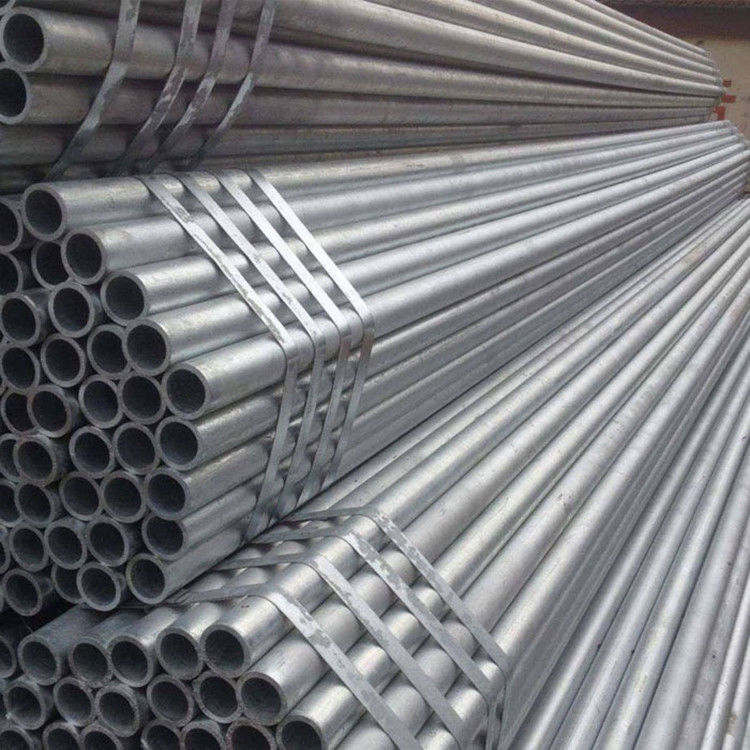

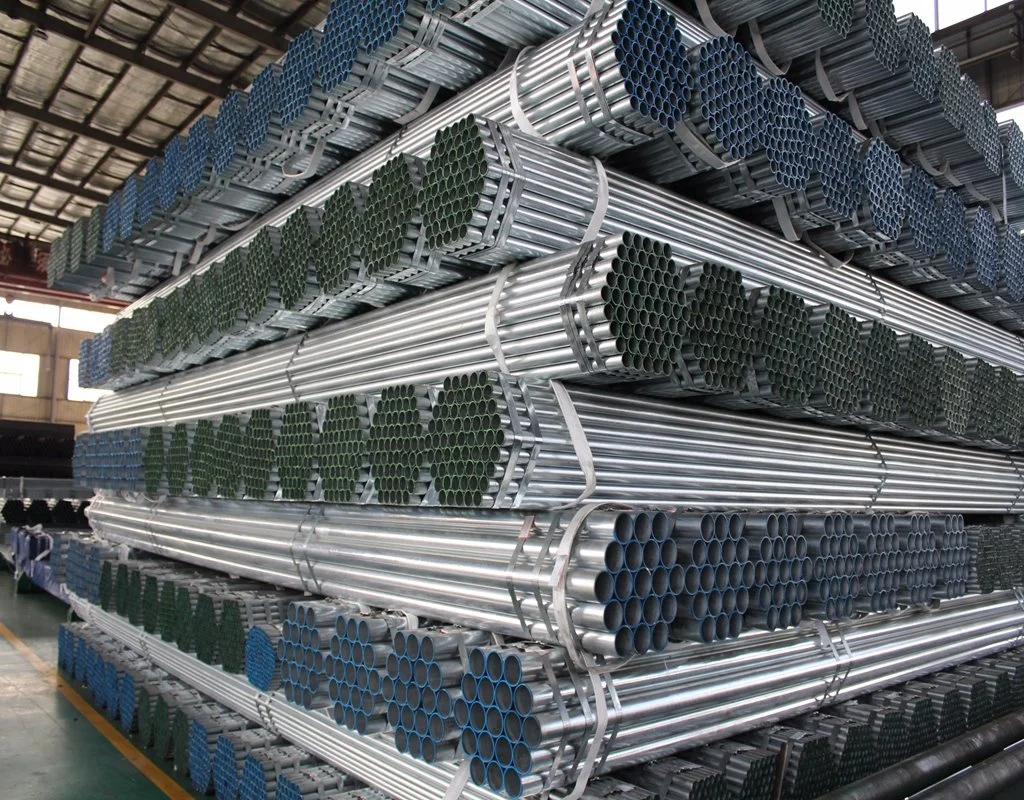

BS1139 En39 Scaffolding Galvanized Steel Pipe Diameter 1-1/2"

BS1139 EN39 Scaffolding pipe 3.2mm & 4.0mm thickness galvanized steel pipe

OD.: 1 1/2" (48.3mm)
Wall thickness: 3.2mm, 4.0mm
Length 6.0M, 5.8M, 12.0M,

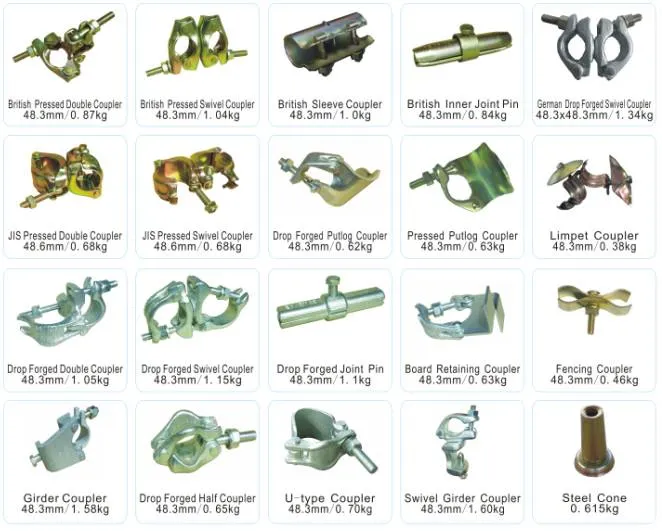

Scaffolding Coupler / Clamp shows:



Steel Pallet and Woven Bag Packaging


Related Scaffolding Products: (can be customized according to your design / drawing)

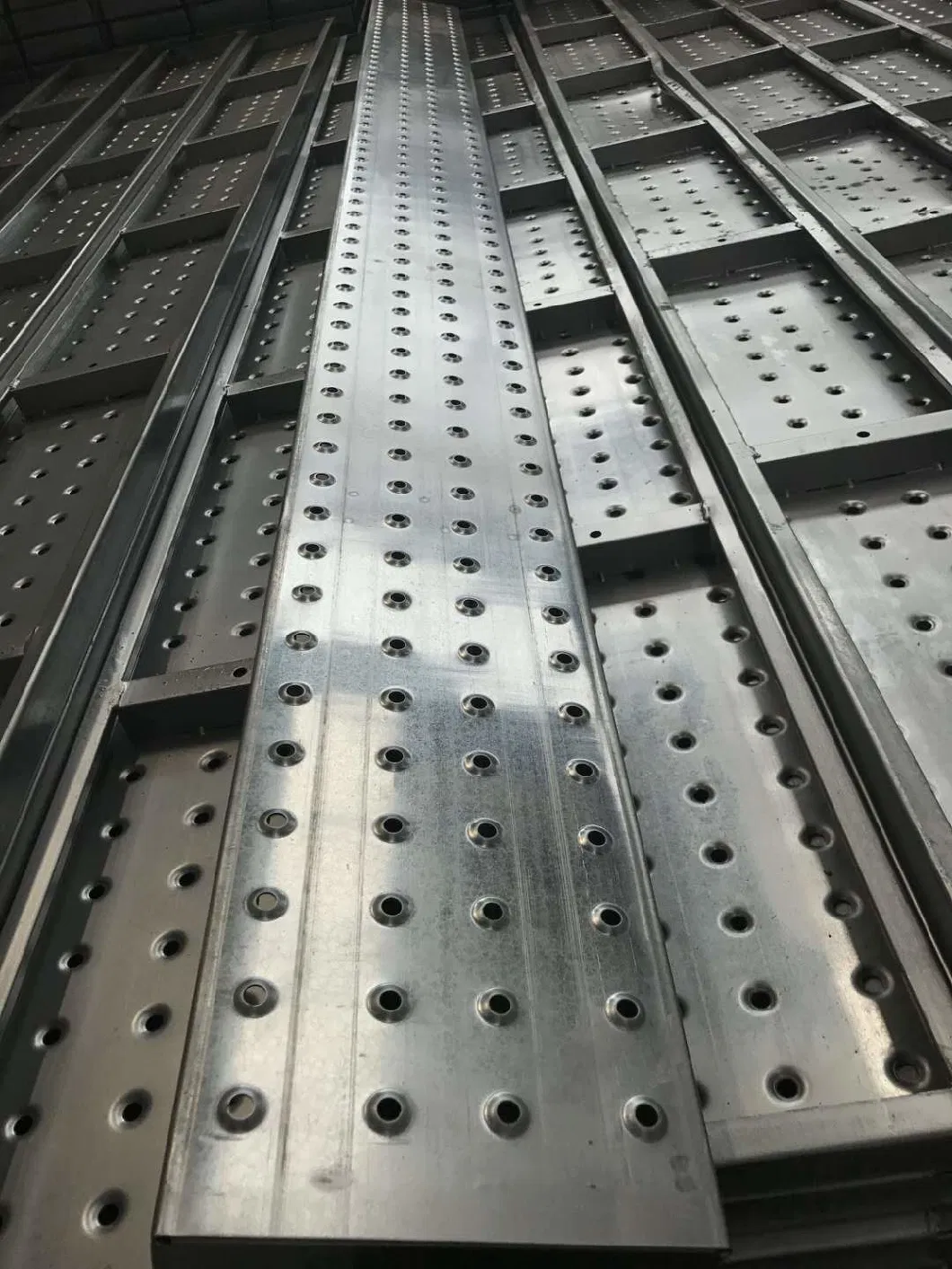

Scaffolding steel board

225*38mm
240*45mm
250*50mm

Length 4.0M, 3.0M, 2.0M, 1.5M, 1.0M




Scaffolding Pipe / Tube 1-1/2" (48.3MM)

Dimensions,mass and tolerances according to EN39 / BS1139:

Dimensions

The specified outside diameter is 48.3MM and the specified wall thickness is 3.2MM for type 3 and 4.0MM for type 4;

Tolerances on dimensions

The tolerance on specified outside diameter is +/-0.5MM;

The tolerance on out of roundness is included in the diameter tolerance;

The tolerance on wall thickness is -10%;

The inside diameter of tubes shall allow insertion of agauge of diameter 37.7mm for aminimu length of 200mm;

Mass

The nominal mass per unit length of type 3 tube is 3.56kg/m and for type 4 tube 4.37kg/m

Tolerance on Mass

The mass deviation on a single tube shall notexceed -7.5% of the specified mass;




Customized Process type for Galvanized steel pipe:

1. Stamping / Embossing

2. Threaded ends / Socketed & plastic cap protection

3. Grooved ends

4. Bending / Arched

5. Water proof bag / Plastic bag protection

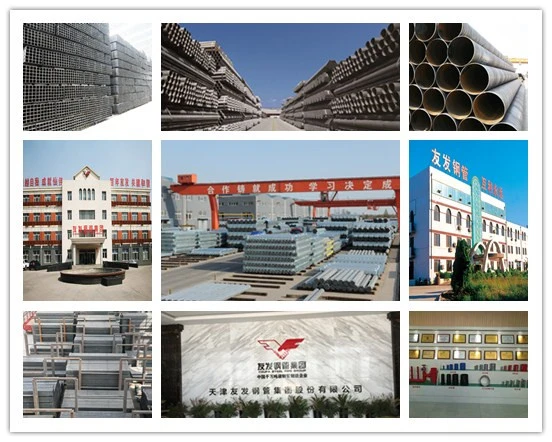

Company's information:


were founded on July 1st,2000, with the headquarters location at the largest welded pipe production basein China-Daqiuzhuang Village, Tianjin city, which is a large-scale steel pipe manufacturing enterprise producing many kinds of pipe products, such as:

ERW steel pipe, hot-dipped galvanized steel pipe, oil casing pipe, SSAW steel pipe, square/rectangular steel pipe, and steel-plastic complex steel pipe.

TOP 500 ENTERPRISES IN CHINA
