Product Details:
|
Coating: | Zinc 40-600g/m2 | Payment: | T/T |
---|---|---|---|
Special Pipe: | Thick Wall Pipe | Coating Type: | PE,SMP, HDP, PVDF |
Secondary Or Not: | Non-secondary | End Type: | Beveled End |
Od Tolerance: | + / - 0.15mm | Application: | Agriculture Shipping Building |
Whatsapp: | +8615301539521 | E-mail: | Sales@tisco-steel.com |
High Light: | Beveled End bs1387 galvanized steel pipe,16mm bs1387 galvanized steel pipe,Beveled End 16mm galvanised pipe |

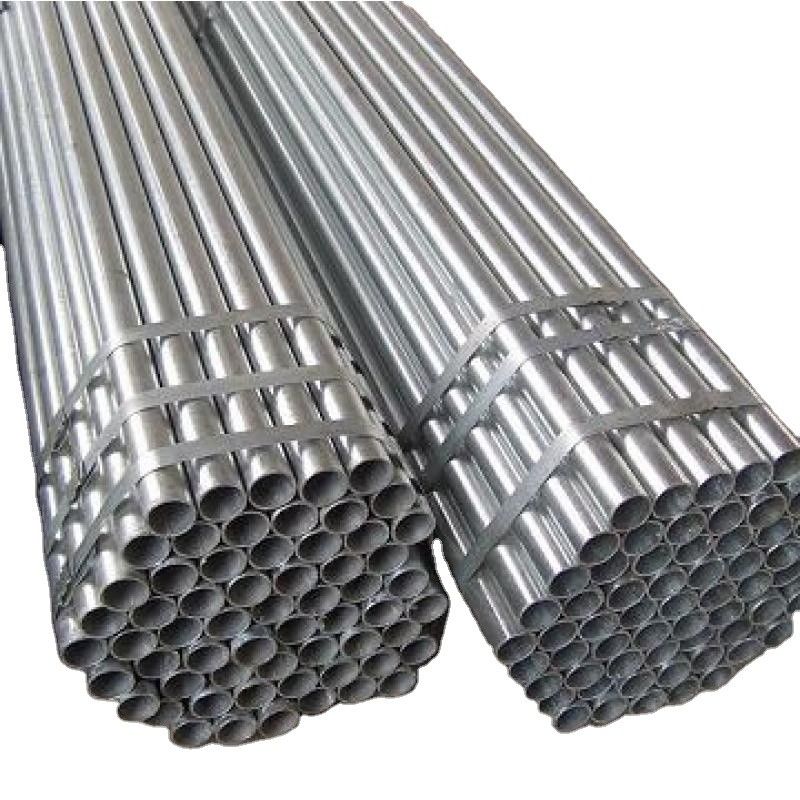

High Quantity Galvanized Steel Pipes BS1387 Standard
Galvanized steel pipe is a hot-dipped zinc-coated steel pipe, which is used for transportation of oil, gas, and water. It is commonly used in fire sprinkler systems, fencing, and other construction projects. It is available in steel grade Q195, Q235, Q215, 16Mn, SS400 and other grades. The end type is usually beveled, and it is non-secondary. This product has been skin passed for superior quality. Payment can be made through T/T.
Galvanized steel pipe is a great choice for use in any piping system, as it is corrosion-resistant and has a longer lifespan than other types of pipe. It is also easy to install, and can be used in a variety of applications, such as in water supply lines, irrigation systems, and oil and gas pipelines. It is an ideal choice for use in harsh environments, as it is resistant to rust and other forms of corrosion.
At our company, we take pride in providing only the highest quality galvanized steel pipe, zinc-coated steel pipe, and other related products. We strive to provide our customers with exceptional service, and our products are backed by a 100% satisfaction guarantee. Our team of experienced professionals is always on hand to answer any questions you may have.
Nominal Size(DN) | utside diamete | Wall Thickness |
weight(black pipe) | Numbers Per Lift | |||
max | min | Plain end Screwed and socketed | |||||
Extra Light | |||||||
mm | inch | mm | mm | mm | Kg/m | ||
15 | 1/2 | 21.4 | 21.0 | 21.3 | 169 | ||
20 | 3/4 | 26.9 | 26.4 | 26.9 | 2.0 | 1.23 | 127 |
25 | 1 | 33.8 | 33.2 | 33.7 | 2.0 | 1.56 | 91 |
32 | 1-1/4 | 42.5 | 41.9 | 42.4 | 2.0 | 1.99 | 61 |
40 | 1-1/2 | 48.4 | 47.8 | 48.3 | 2.3 | 2.61 | 61 |
50 | 2 | 60.2 | 59.6 | 60.3 | 2.3 | 3.29 | 37 |
65 | 2-1/2 | 76.0 | 75.2 | 76.1 | 2.3 | 4.19 | 37 |
80 | 3 | 88.7 | 87.9 | 88.9 | 2.6 | 5.53 | 19 |
100 | 4 | 113.9 | 113.0 | 114.3 | 3.2 | 8.77 | 19 |
(A) Light | |||||||
mm | inch | nun | mm | mm | Kg/m | ||
15 | 1/2 | 21.4 | 21.0 | 21.3 | 2.0 | 0.956 | 169 |
20 | 3/4 | 26.9 | 26.4 | 26.9 | 2.3 | 1.40 | 127 |
25 | 1 | 33.8 | 33.2 | 33.7 | 2.6 | 2.00 | 91 |
32 | 1-1/4 | 42.5 | 41.9 | 42.4 | 2.6 | 2.55 | 61 |
40 | 1-1/2 | 48.4 | 47.8 | 48.3 | 2.9 | 3.25 | 61 |
50 | 2 | 60.2 | 59.6 | 60.3 | 2.9 | 4.11 | 37 |
65 | 2-1/2 | 76.0 | 75.2 | 76.1 | 3.2 | 5.75 | 37 |
80 | 3 | 88.7 | 87.9 | 88.9 | 3.2 | 6.76 | 19 |
100 | 4 | 113.9 | 113.0 | 114.3 | 3.6 | 9.83 | 19 |
125 | 5 | 139.7 | 3.5 | 11.76 | 7 | ||
150 | 6 | 165.1 | 3.5 | 13.95 | 7 |
Size | 1/2"-4" |
Wall thickness (W.T.) | 0.8mm-6.0mm |
Length | 3.75M,5.8M,6.0M,1m-12m ,by customer's requiremnts |
Internatioanal Standard | ISO 9000-2001,CE CERTIFICATE,BV CERTIFICATE |
Standards | BS1387-1985,GB/T3091-2001,EN39,BS1139 |
Materials | Q195,Q215,Q235,Q345 |
Product Category | Metallurgy,Mineral &Energy |
Technique | Welded |
Packing |
1.Big OD:in bulk 2.Small OD:packed by steel strips 3.woven cloth with 7 slats 4.according to the requirements of customers |
Usage |
Mechanical&manufacture,Steel strcuture, Shipbuilding,Bridging,Automobile chassis |
Main market | Middle East,Africa, Asia and some Uropean country and South America ,Australia |
Country of origin | China |
Productivity | 5000 Metric Tons pet Month |
Remark |
1. Payment terms :T/T ,L/C 2. Terms of trade :FOB ,CFR,CIF ,DDP,EXW 3. Minimum order : 20 tons 4. Lead time :on or before 20 days . |
Logo | TOP 500 CHINA |
Contact | Vincent Lee |
Steel Pipe Group Co. was founded on July 1st,2000,with the headquarters located at the largest steel pipe production base in China-Daqiuzhuang Village,Tianjin City;
- Produced over 15million tons of various steel pipes in 2017;
- the largest welded steel pipe manufacturer in the world, Production and Sales No.1 for 13 consecutive years in China. Products exported to over 86 countries and regions,the Top 500 Enterprises in China;
- has formed four production bases in Tianjin City, Tangshan City, Handan City and Shanxi Province;
- International Trade Co., is a subsidiary of Steel Pipe Group,located in Tianjin City.Company has 55 professional talents. In order to provide personalized service for foreign businessmen, we have opened a processing factory of 10,000 square meters;
- Products cover ERW Steel Pipe, Hot Dipped Galvanized Steel Pipe, Square and Rectangular Steel Pipe,Steel Pipe of Lining Plastic,Plastic-coated Steel Pipe, Spiral Steel Pipe, Highway Materials.
We look forward to working with you in the near future. Contact us now to know more regarding our products and services.
