Beveled End Galvanized EMT Steel Gas Pipe UL 797 Standard

Certification
China Jiangsu Tisco Tianguan Metal Products Co., Ltd certification
China Jiangsu Tisco Tianguan Metal Products Co., Ltd certification
Customer Reviews
We bought your product last time,thequality is very good, now we want toorder some more seamless stainlesssteel pipes.

—— James

Thank you. I am very satisfied withthe quality of your service andproducts, and we will continue tocooperate in the future.

—— Tony

I'm Online Chat Now

Beveled End Galvanized EMT Steel Gas Pipe UL 797 Standard

Beveled End Galvanized EMT Steel Gas Pipe UL 797 Standard
Beveled End Galvanized EMT Steel Gas Pipe UL 797 Standard

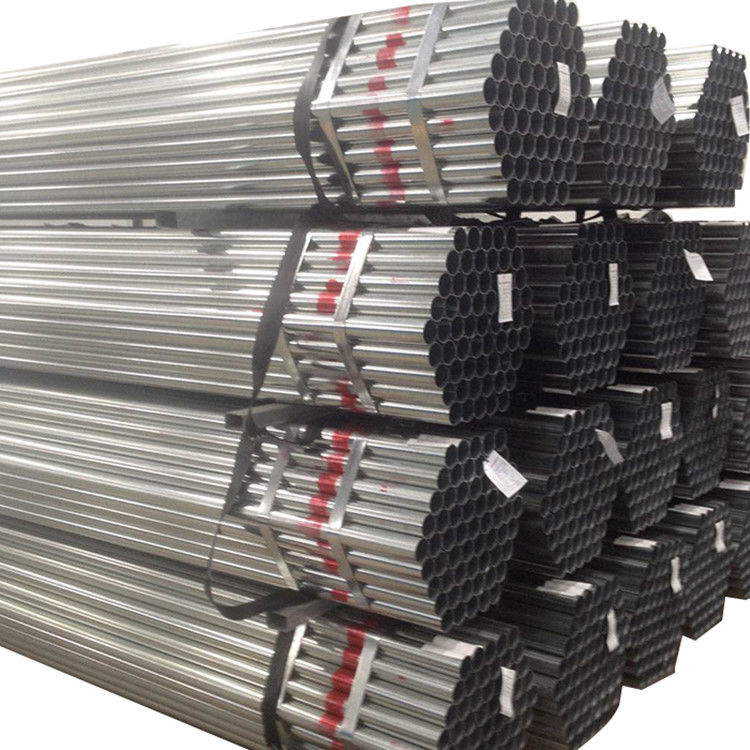

Large Image :  Beveled End Galvanized EMT Steel Gas Pipe UL 797 Standard

Product Details:
Place of Origin: Jiangsu
Brand Name: Galvanized Steel Pipe
Model Number: Galvanized Steel Pipe
Payment & Shipping Terms:
Minimum Order Quantity: 20Tons
Supply Ability: 300000 Tons

Beveled End Galvanized EMT Steel Gas Pipe UL 797 Standard

Description
Special Pipe: Thick Wall Pipe Coating Type: PE,SMP, HDP, PVDF
Od Tolerance: + / - 0.15mm Payment: T/T
Coating: Zinc 40-600g/m2 Secondary Or Not: Non-secondary
End Type: Beveled End Steel Grade: Q195, Q235, Q215, 16Mn, SS400
Whatsapp: +8615301539521 E-mail: Sales@tisco-steel.com
High Light:

Galvanized EMT Steel Gas Pipe

,

galvanized steel gas pipe UL 797

,

Beveled End galvanized steel gas pipe

Galvanized EMT Steel Electrical Conduit Pipe UL 797 Standard

Product Description:

Galvanized Steel Pipe is a kind of corrosion-proof and anti-corrosive metal piping that is widely used for water supply in agricultural and shipping building applications. It is made of grade Q235/Q345/SS400 steel material and is galvanized for added durability. Its outer diameter (OD) tolerance is +/−0.15mm, and it is coated with PE, SMP, HDP or PVDF for enhanced corrosion resistance. It is an ideal choice for water supply projects as it has high corrosion resistance and excellent performance in both outdoor and indoor environment. It is also easy to install and requires little or no maintenance, which makes it a highly cost-effective solution.

The Galvanized Steel Pipe is an ideal piping solution for water supply due to its corrosion-proof properties, and it is specifically designed to withstand the harsh conditions of outdoor environment. Its superior galvanized finish ensures outstanding performance in various applications and offers long-term protection against corrosion and other elements. It is also lightweight and durable, and it can be used in a range of water supply projects, such as drainage systems, industrial piping, and irrigation systems.

Basic Info.

Model NO.
A-1001
Outside Diameter
17.93-114.3mm
Wall Thickness
1.07-2.11mm
Trade Size
1/2" -4"
Length
3050mm
Transport Package
Standard Seaworthy Packing
Specification
Hot dip coil prossing
Trademark

Origin
China
HS Code
7306309000

Product Description

Product Details

Application: high quality hot-dip coil processing, uniform zinc coating, good finish inside and outside, wall surface is smooth, without spots and bubbles, corrosion resistance. Suitable for wet, corrosive environment of harsh lighting, mechanical equipment. protective wire installation.

UL 797 Standard Galvanized EMT Steel Electrical Conduit Pipe


Specification
1) Applicable Tolerances: Outside Diameter: ±0.13mm (0.005") Length: ±6.35mm (0.25")
2) Customization: The wall thickness and length can be customized.
3) Available finishes: Pre-Galvanized or Hot dipped galvanized
4) Standard: American Standard ANSI C80.3-1983 UL797
5) Application: Protect Cable Wire
A-1001 EMT Conduit (Electrical Metallic Tubing)
Trade Size Outside Diameter Wall Thickness Length Qty per Bundle
inch inch mm inch mm ft meter pcs
1/2" 0.706 17.93 0.042 1.07 10 3.05 20
3/4" 0.922 23.42 0.049 1.25 10 3.05 15
1" 1.163 29.54 0.057 1.45 10 3.05 10
1-1/4" 1.510 38.35 0.065 1.65 10 3.05 5
1-1/2" 1.740 44.20 0.065 1.65 10 3.05 5
2" 2.197 55.80 0.065 1.65 10 3.05 5
2-1/2" 2.875 73.03 0.072 1.83 10 3.05 3
3" 3.500 88.90 0.072 1.83 10 3.00 2
4" 4.500 114.30 0.083 2.11 10 3.00 2


Company Profile

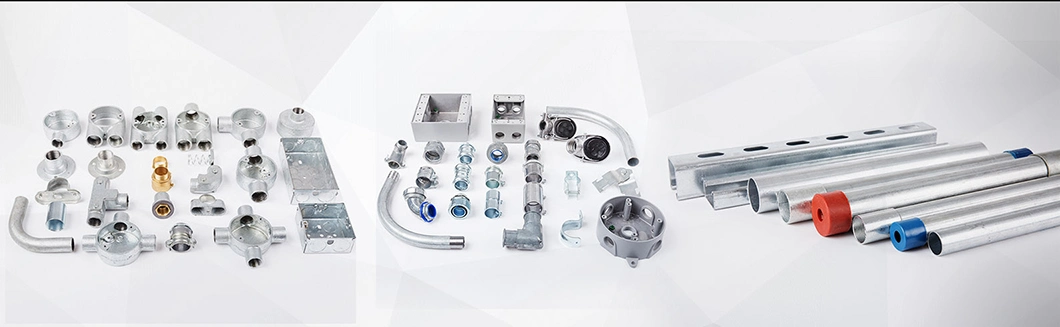

Specificalized in Strut channel & fittings, PVC coated flexible conduit, BS4568-1907, BS31-1940, IMC and EMT conduit and fittings, gi electrical box.

High quality and competitive price are our advantages. Fujian Tuochang Import and Export Trade Co.,Ltd which is a trading company of electrical conduit and fittings with brand TOCA®, offering the most durable, bendable, and easy-to-install electrical steel conduit to importer, distributor and contractors.

UL 797 Standard Galvanized EMT Steel Electrical Conduit Pipe



In the past years, depending on high quality, competitive price and good service, our company has won customer's appreciation and trust. Exporting to European, American, Middle East, Southeast Asia, Afican and other countries and regions.

We are working hard to earn your business and cooperating with you!

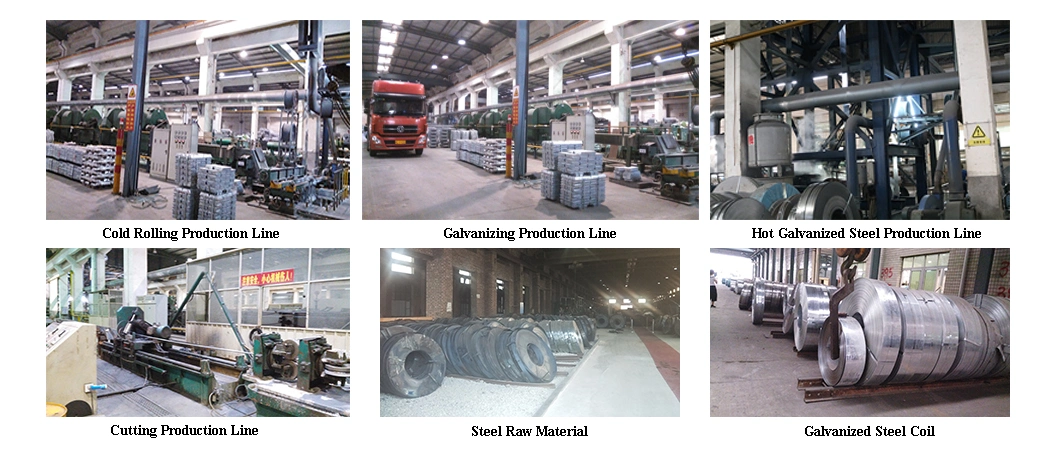

Production Line
UL 797 Standard Galvanized EMT Steel Electrical Conduit Pipe


Certification

UL 797 Standard Galvanized EMT Steel Electrical Conduit Pipe

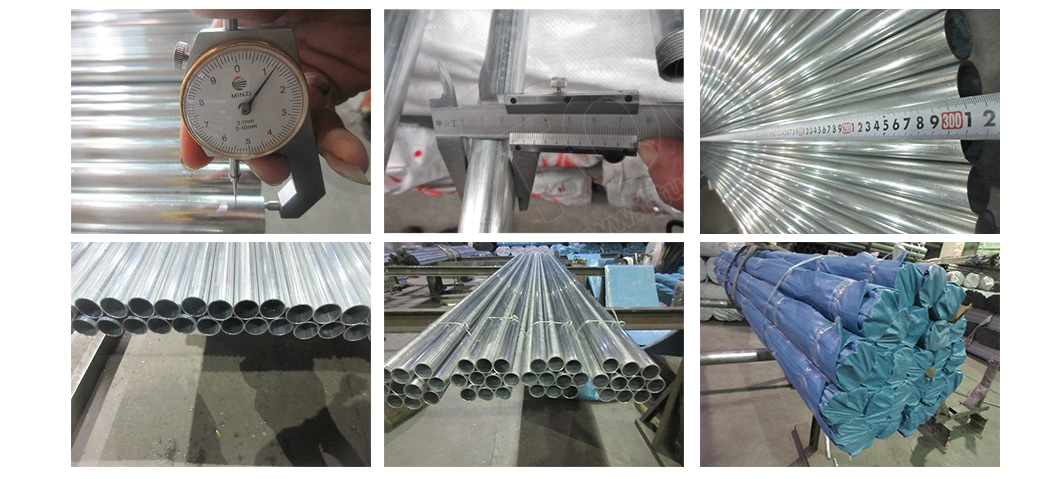

Inspection Process
The length and thickness can be customized according to clients requirements.

UL 797 Standard Galvanized EMT Steel Electrical Conduit Pipe










Our Service

1) Excellent Quality: The stable supply ofmaterials we used is good quality, and we pay more attention and strictly treat the quality from production and package.

2) Customized Service: We can customize the size and engraving service of the product according to the customer's needs.

3) Offering Best Price: We have professional factory, so our cost is low than others and you can get a favorable price from us.

4) Convenience For Purchasing: Customers can find conduit and all the related fittings here, and can get all the goods you need in a short time. Like set screw coupling/compression connectors/ strut clamps and so on.

5) Good Service: We have a professional sales and after sales team, so that provide you detailed information and timely after-sales service.

6) Delivery Time: We can easily control the quality, delivery time, packing details, printings to meet the requirement from our customers.

7) Technical Support: With keen insights into the market information, we provide the latest updates price of market and technical data support. Our well managed team of technocrats and qualified engineers have in depth industry knowledge in their respective domains and are well accustomed with varied industry specifications.

8) OEM : To bring you with better profits, we can also pack the products with your own brand to avoid the direct price competition.



FAQ

UL 797 Standard Galvanized EMT Steel Electrical Conduit Pipe
